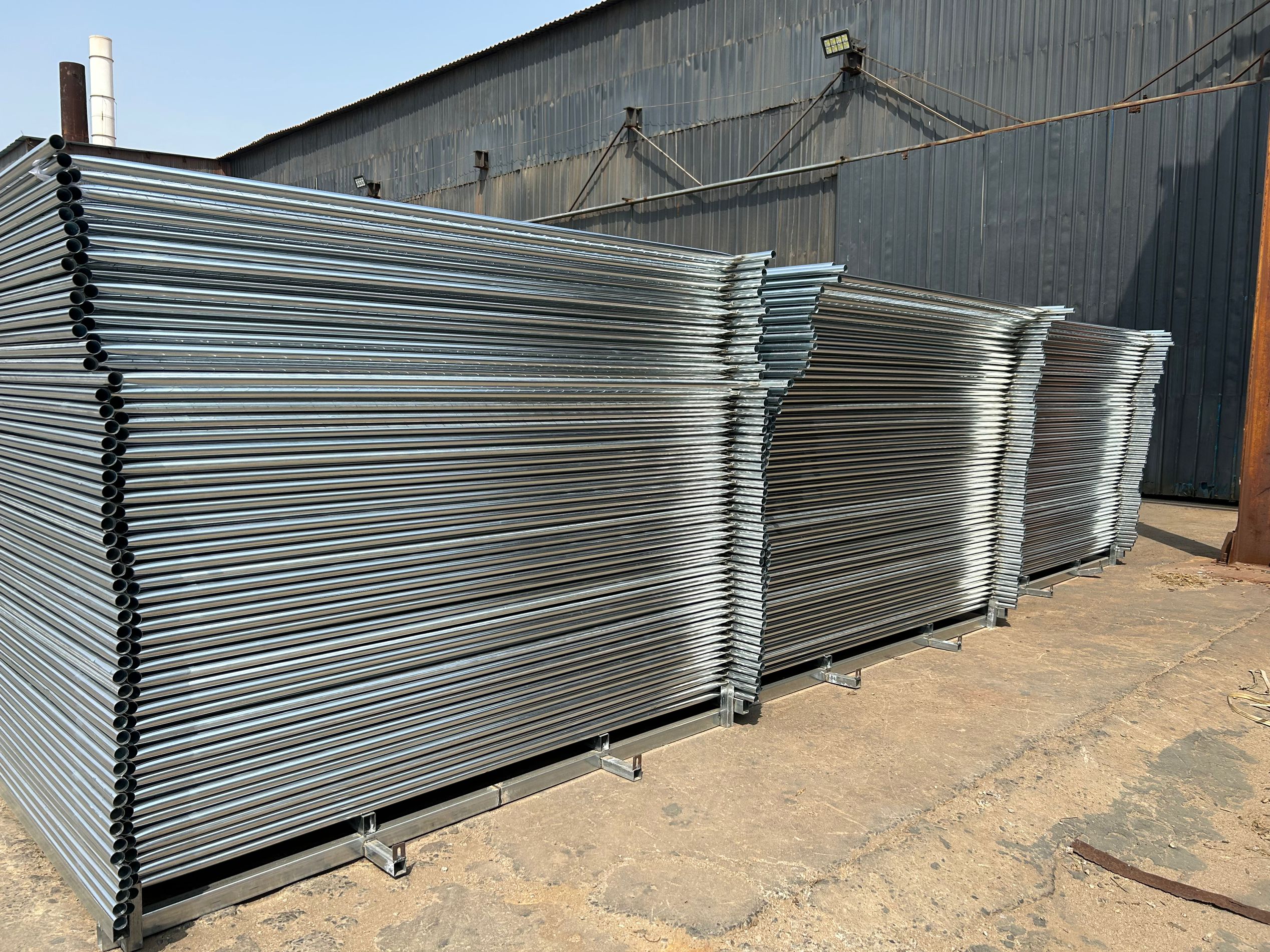

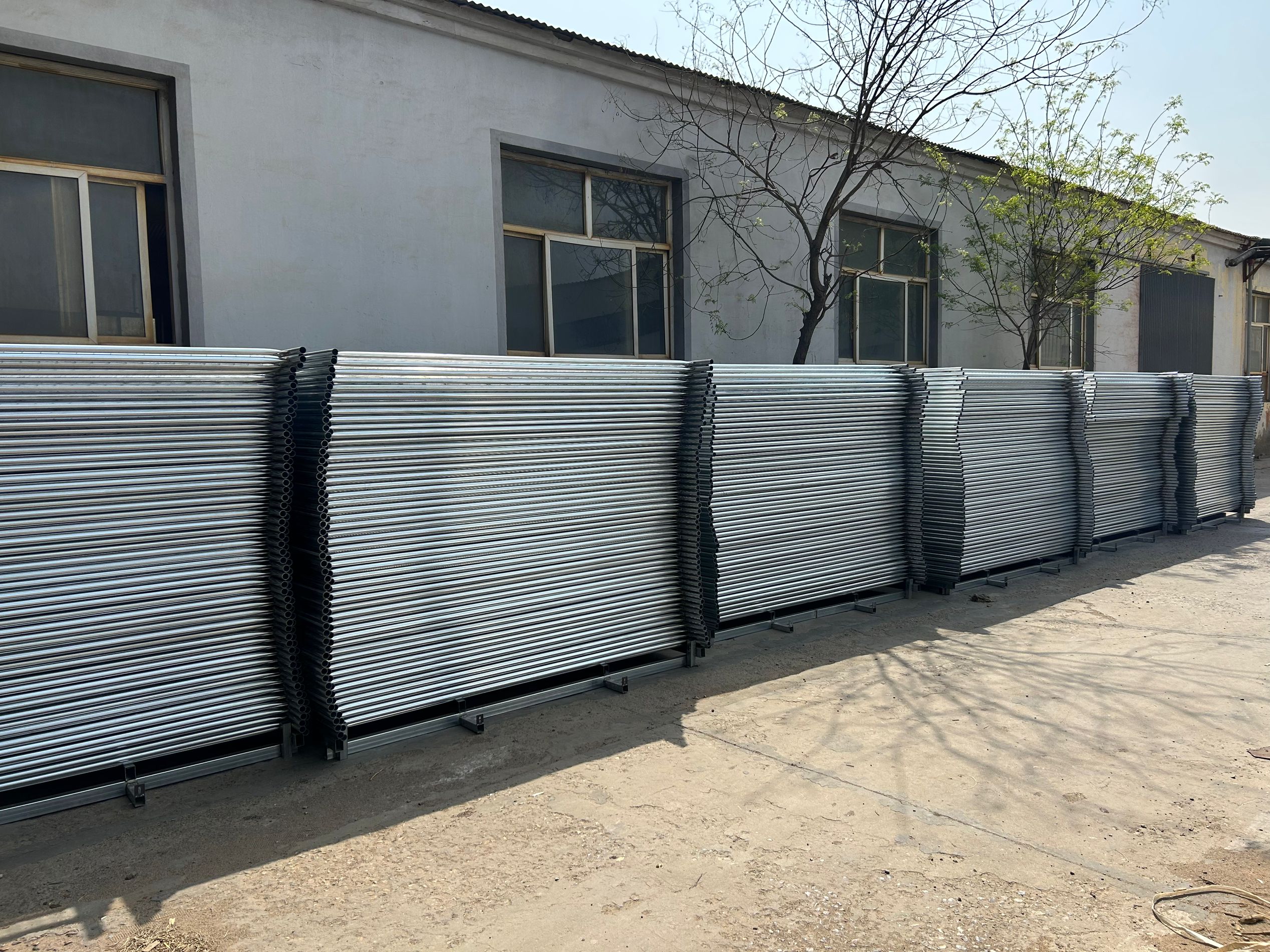

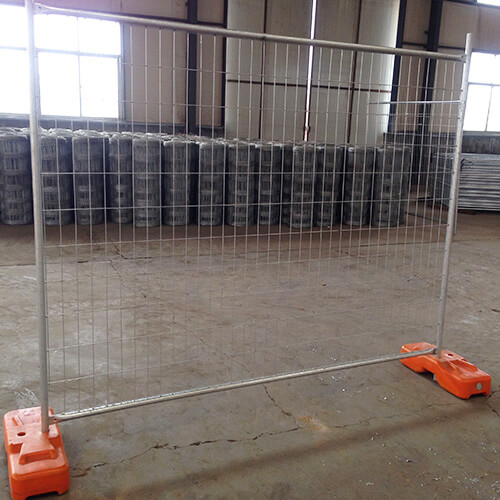

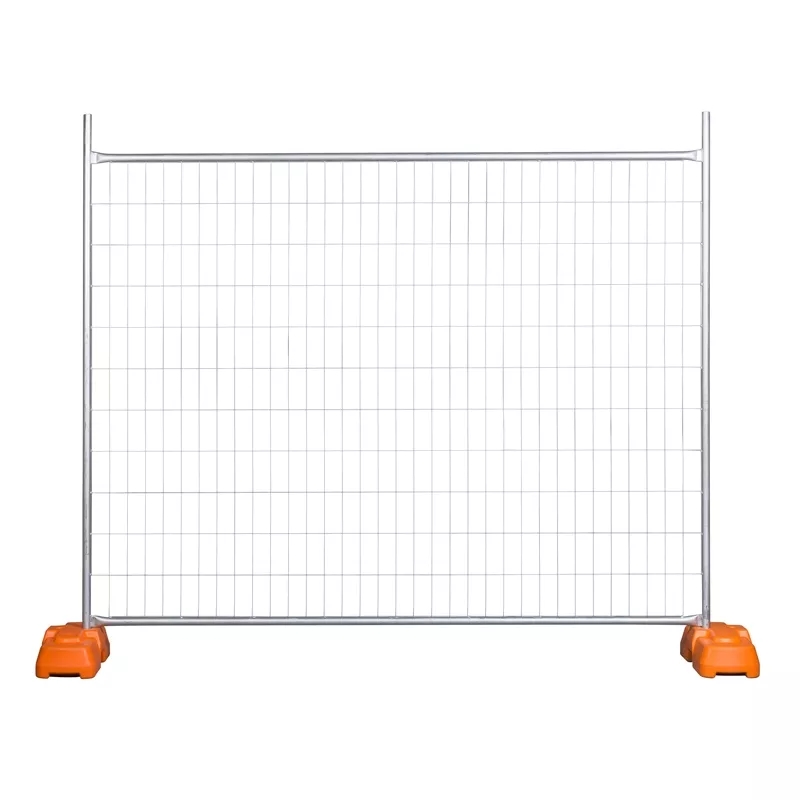

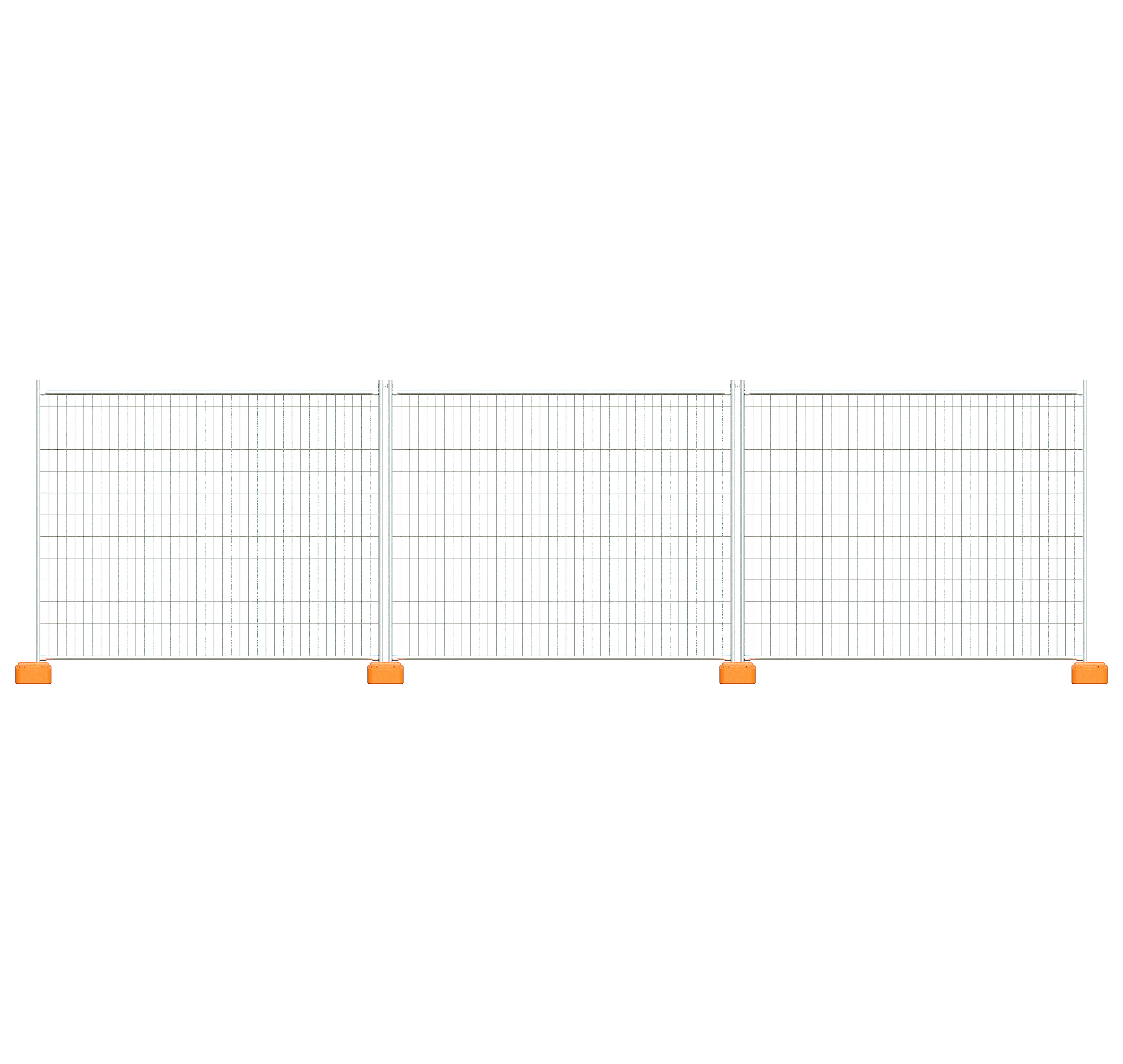

Temporary Fencing Panels
Our Heavy Duty Temporary Fencing Panels are designed for long life and regular use. They incorporate an anti-climb weldmesh infill and are fully hot dipped galvanised to Australian Standards.
Specification:
“Smart Panel 2400” – 2.4 Welded Mesh Panel
| Panel Size: | 2400mm(L) x 2100mm(H) |
| Frame: | 32mm O.D. – 1.35 Pipe Wall Thickness |
| Infill Mesh: | 3mm horizontal, 3mm vertical 150mm x 60mm spacings |
| Weight: | 16kgs |
| Finish: | Hot Dipped Galvanised |
“Maxi Panel 2400” – 2.4 Welded Mesh Panel
| Panel Size: | 2400mm(L) x 2100mm(H) |
| Frame: | 32mm O.D. – 2mm Pipe Wall Thickness |
| Infill Mesh: | 4mm horizontal, 4mm vertical 150mm x 60mm spacings |
| Weight: | 22kgs |
| Finish: | Hot Dipped Galvanised to Australian Standard – 42 Microns |
“Maxi Panel 3300” – 3.3 Welded Mesh Panel
| Panel Size: | 3300mm(L) x 2100mm(H) |
| Frame: | 32mm O.D. – 2mm Pipe Wall Thickness |
| Infill Mesh: | 4mm horizontal, 4mm vertical 150mm x 60mm spacings |
| Weight: | 30kgs |
| Finish: | Hot Dipped Galvanised to Australian Standard – 42 Microns |

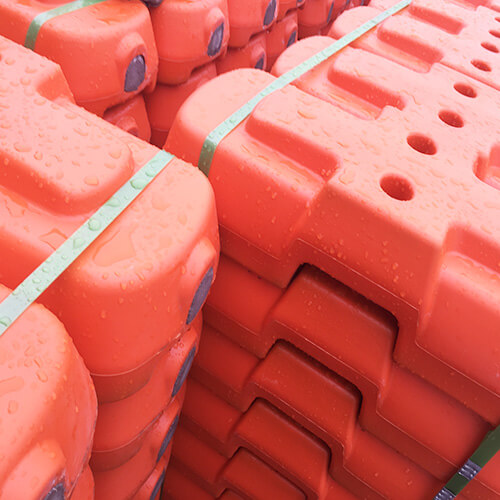

Feet Size: 600mm x 230mm x 150mm.
Features
Full range of colours available
Made of a Flexible & Durable co-polymer polypropylene.
UV5 for sun/weather protection.
Carry handles at both ends
Wide range of post hole sizes available – 20, 25, 32 & 40mm nb. (26, 33, 42 & 48mm od)
Post holes can run across or up and down the blocks
Personalised name plates displaying your Company Name, Phone Number, Web Site Address etc can be supplied.
We can transport them to you anywhere in Australia.
Designed to be filled with concrete.

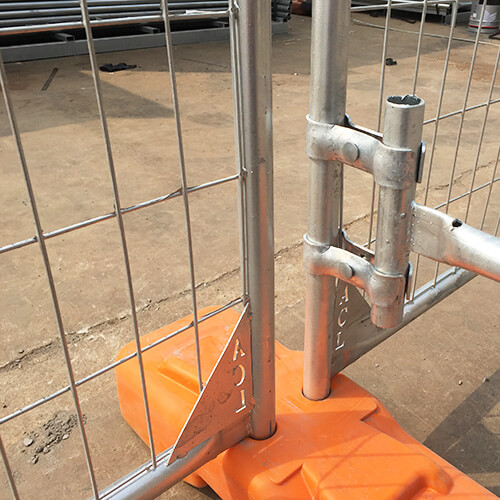

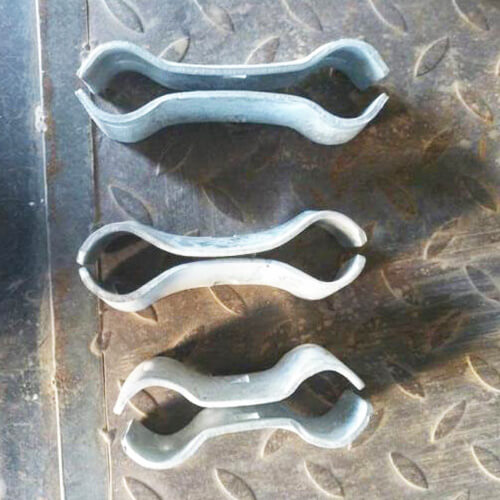

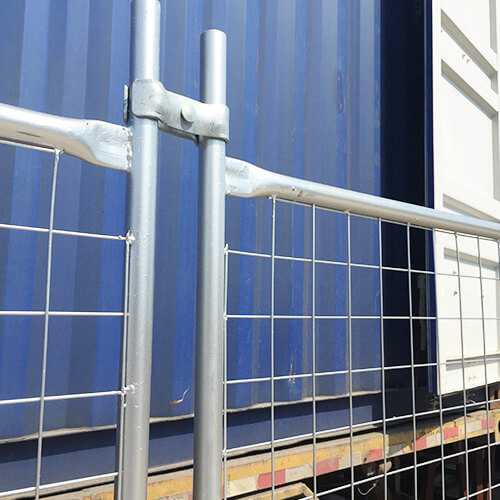

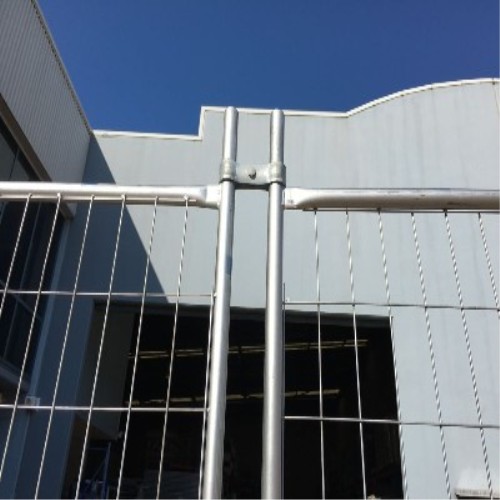

Temporary Fence Clamps
High quality Temporary Fence Clamps used to secure the panels together.
Heavy duty 4mm thick steel Clamps are used to join the Temp Fence panels together and to
attach support stays to the panels.
Formed for strength to resist bending and twisting and keep your site secure. Comes complete with a bolt and nut.
– to fit 25mm OD (50mm pitch)
– to fit 33mm OD (71mm pitch)
– to fit 42mm OD (80mm pitch)
– to fit 50mm OD (80mm pitch)
Finish: Hot Dipped Galvanised – 42 Microns

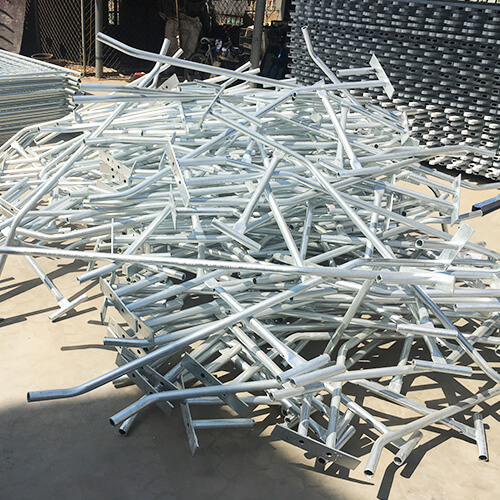

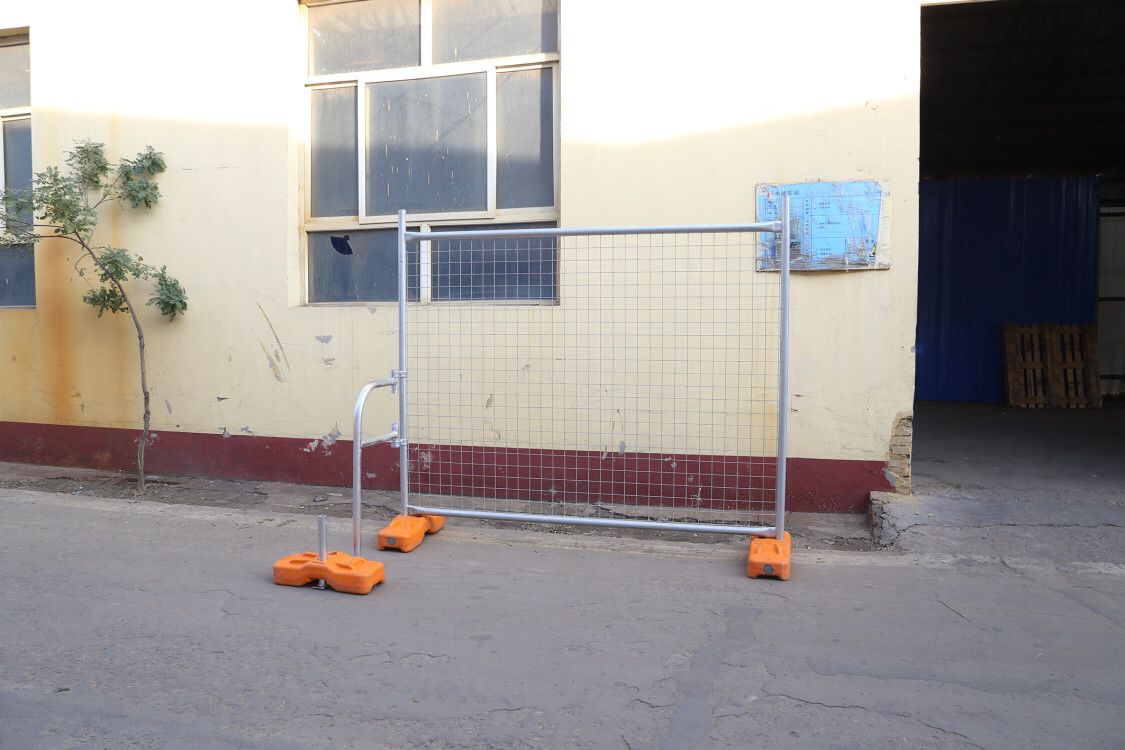

Temporary Fence Brace
High quality Temporary Fence Brace used to support the temporary fence in high wind areas.
Hot Dipped Galvanised to Australian Standard – 42 Microns.
Specially designed for extra strength so fence stands up in very high winds.
Each Stay requires 3 Clamps and 3 Plastic Feet.
